ESP32S3- Controller

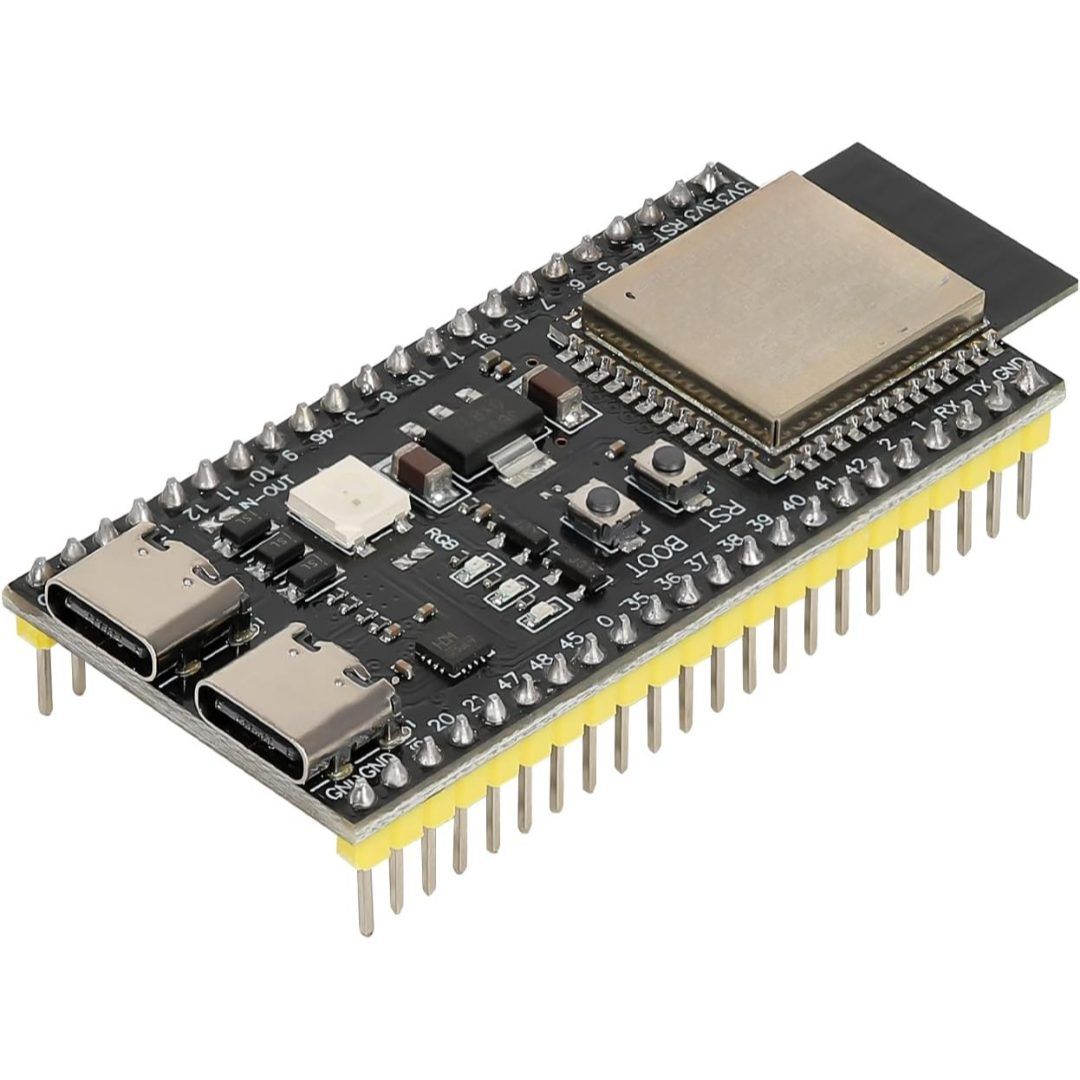

The core component is an ESP32-S3 DevBoard (N16R8) with the original pin layout and 16MB flash and 8MB PSRAM.

The ESP32-S3 DevBoard is available from various manufacturers, is readily available and can be purchased at a reasonable price from Amazon or AliExpress, for example. The cost is approximately €8-12 per board.


The controllers are often available with or without soldered pin headers. I always recommend the versions with soldered pin headers. They only cost a little more, but they save you some work.

Waveshare offers the compatible ESP32-S3-DEV-KIT-N16R8, which can also be found under this name on Amazon and other retailers. It is slightly more expensive than the generic boards.

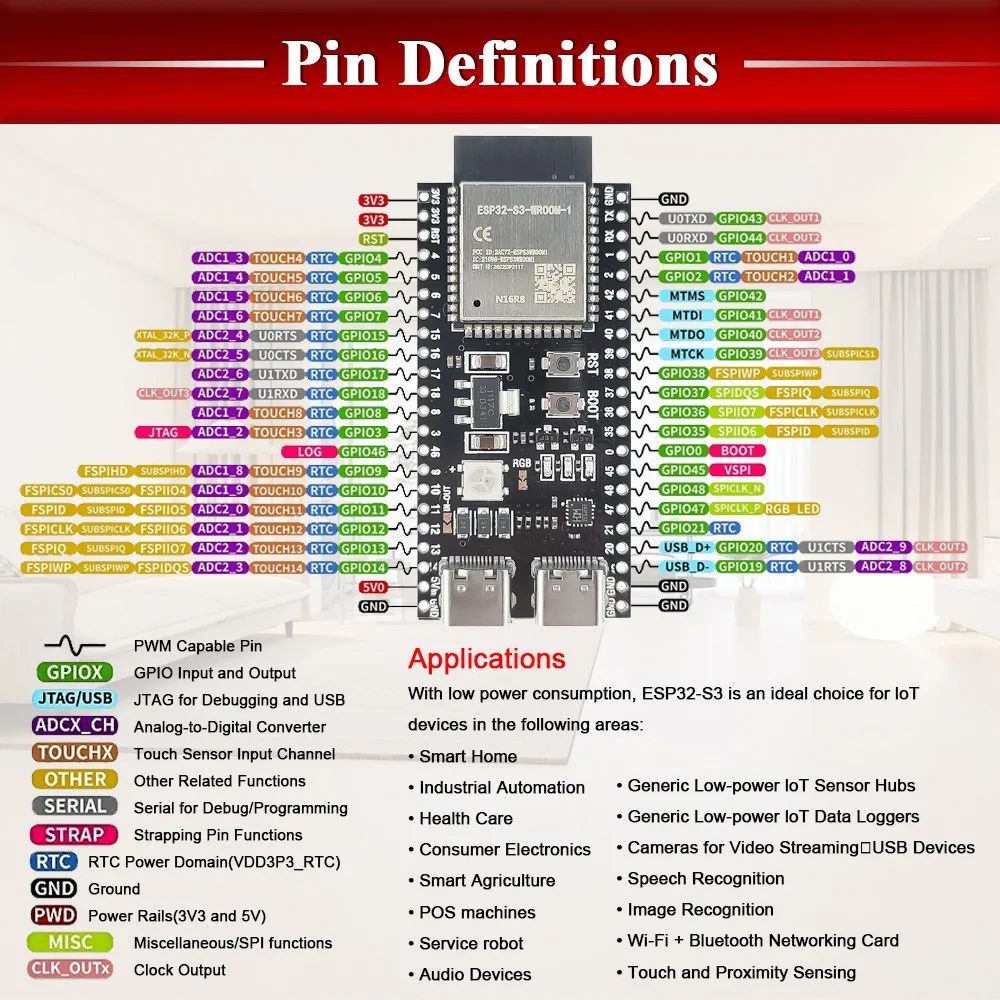

Unfortunately, there are at least two different pin layouts under the name ESP32-S3 DevBoard. This is how the pin assignment should look:
